Low Noise Electric Linear Actuator 12v 100mm 4 inch Stroke 600N 132LBS 3mm/s Linear Actuator Motor for Power Sunroof

Low Noise Electric Linear Actuator 12v 100mm 4 inch Stroke 600N 132LBS 3mm/s Linear Actuator Motor for Power Sunroof
  • Продавецphiladelphiaeaglesvscarolinapanthers.us
  • Список ценUS $33.84piece
  • Продажная ценаUS $33.84piece
  • ДоставкаБесплатная доставка
  • Рейтинги4,6 (466)

Oписание продукта

Catalog_01Catalog_02Catalog_03Catalog_04Catalog_06Catalog_07Catalog_08Catalog_09Catalog_10Catalog_11Catalog_12Catalog_13









Max Load: 7000N=700KG

Limited switch : yes

Speed : 5-25mm/s-accordint to load

Stroke : 100mm=4 inch

Working duty : 25%,10% for high speed

Housing & Inner tube material : Aluminum Alloy

IP Class : IP65



Do you want to control it as your wishes? So try our Power supply with cotroller and Mounting bracket for this product, pls check below link:



Bracket               Remote Controller        Cable Controller

HTB1IC_5JVXXXXX4XpXXq6xXFXXX2HTB1zGYLJVXXXXawXVXXq6xXFXXXY

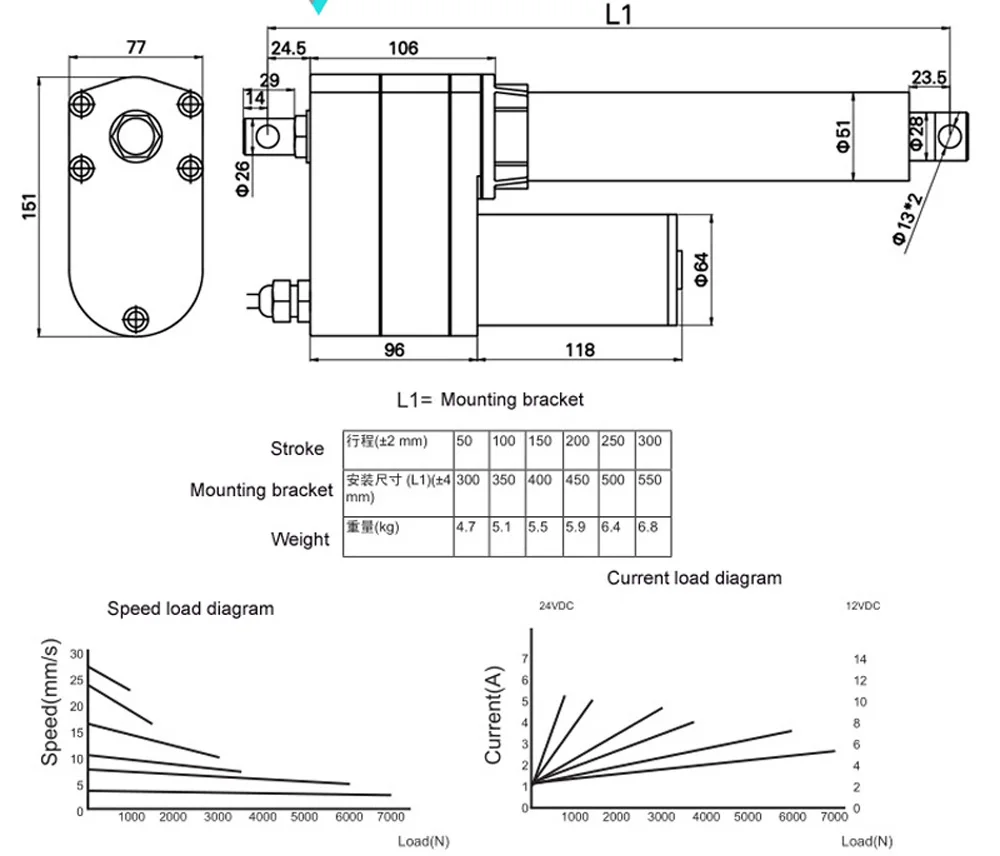

L size means the total length when full lifting.

TGC_02



In our company, you will get a good and special service.

1

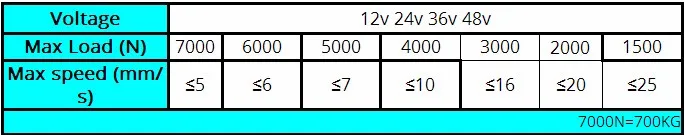

Such as you need Max Load is 3000N, you can leave message speed 16mm/s,  14mm/s, or 5mm/s, sure, 20mm/s is not available.

Please leave message of Voltage, Load and Speed which you want, if without message within 1 days after your payment, we will deliver 12V 7000N 5mm/s by default, thanks for understand.



2



Attention:

The following conditions can cause serious damage to the product:
1. Direct connect with AC power
2. Use in the above standard voltage environment
3. Push/Pull exceed the maximum value of the product show
4. The stroke did not finish, still with power, forced to cease

The following conditions may shorten the product life:
1. High frequency operation
2. The high temperature

Common Fault Analysis:

1. Problem: thrust didn’t reach standard value
  Reason: the power is no enough
  Suggestion: replaced by a more powerful power supply
2. Problem: sometime working well but sometime not
  Reason: poor contact
  Suggestion: replaced by a new connector
