Oписание продукта

Features:



.Multiple hardware protection measure

There are over-current protection, over-voltage protection, reversal protection for the power supply and all the input and output terminal.

.Integration with Other Security Systems

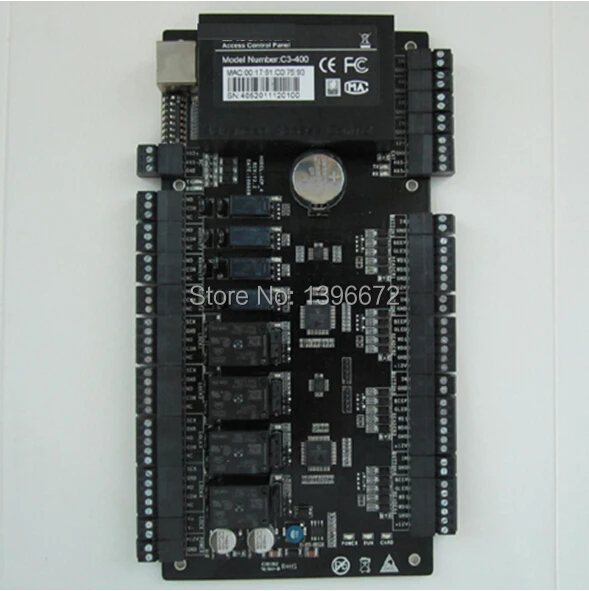

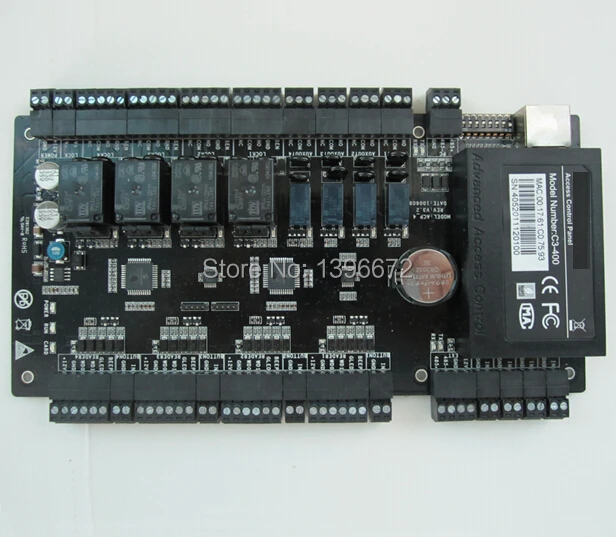

C3-400 can be integrated with other security systems such as CCTV, fire alarm, BAS(building automation system) and other systems to configure total security system.

.Supports different wiegand reader

wiegand format, and can connect to different reader, including ID card reader

.Input/Output Ports to Control Doors

Connect with variety of sensors, alarms, exit buttons, electric lock and other devices.

.Variety of Communication Function

Using either serial or TCP/IP communication, it provides reliable network system

.B/S structure software

It is easy to manage the system by browser from client PC. There is no need to install software on each client.

.Normal open after first punch card can be setup

.Real-time Monitoring of Door status

Using the management software, it allows real-time monitoring and control of door opening and closing of the whole system.

.Simple Access Control System Configuration

.Interlock function

Link different doors with special logic that one door is Open, others should be closed.

.Multi-card operation

This function is used to manage visitors or to manage some special high secure place. The doors are opened when appointed number registered cards are read together.

.Anti-Passback

.Duress Mode

The system integrator can use the SDK to integrate the hardware into their existing access control software system or to develop a new software.





Specifications:

CPU

32bit MIPS CPU



RAM

32M bits



Flash Memory

256M bits



User

30,000



Event Buffer

100,000



Power / Current

DC 9.6V-14.4V, Rated Max.1A



Reader Port

4ea (26bit Wiegand, 8bit Burst for PIN)



Communication

RS485, TCP/IP



Baud Rate

38,400bps (Recommended) / 9600bps, 19,200bps, 57,600bps (selectable)



Input Port

12ea (Exit Button#1, Exit Button#2, Button#3, Button#4, Door Sensor#1, Door Sensor#2, Door Sensor#3, Door Sensor#4, Aux#1, Aux#2, Aux#3, Aux#4)



Output Port



4ea (4 FORM-C Relay Output, SPDT [email protected]/[email protected])



4ea (4 Aux FORM-C Relay Output, SPDT [email protected])



LED Indicator

Yes, LED indication for communication, power, status and punch card



Operating Temperature

0°to +55°C



Operating Humidity

10% to 80% relative humidity non-condensing



Dimension (L*W)mm

218(W)*106(H)(single board )

345(W)*275(H)*70(D)(with power supply and metal box)



Certification

CE, FCC, RoHS






Card Type: Proximity
Card Frequency: 125 KHz
Data Mode: Wiegand 26
ProximityRange: >=5cm
Built-in buzzer
LED indicator: Red, Green
Working current: <= 30 mA
Working Voltage: DC 5-16V, standard 12V
SAmbient temperature: -10C to 50 C
Ambient humidity : 10%-90%
Speed: <= 0.2 sec
Punching Interval: < 0.5 sec
Communication Distance: 100 meters
Transmittal Mode:real-time
