OVERVIEW

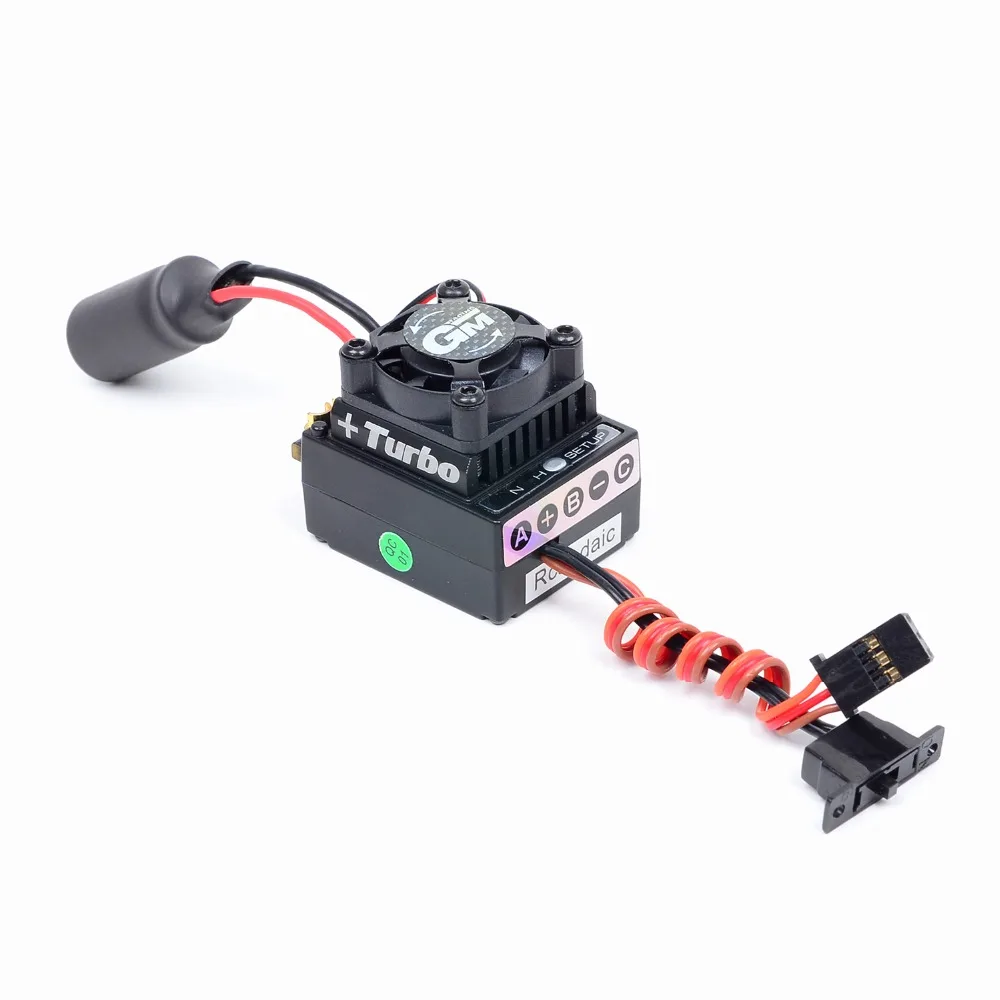

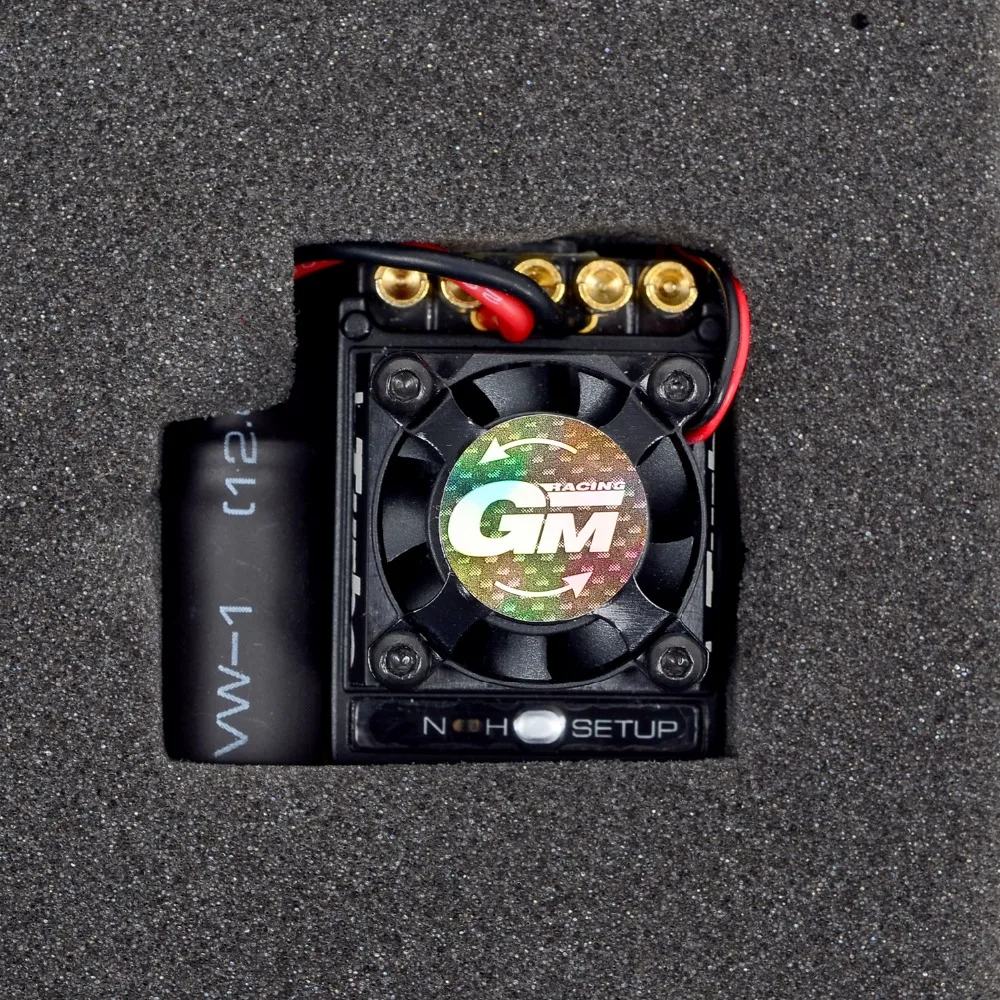

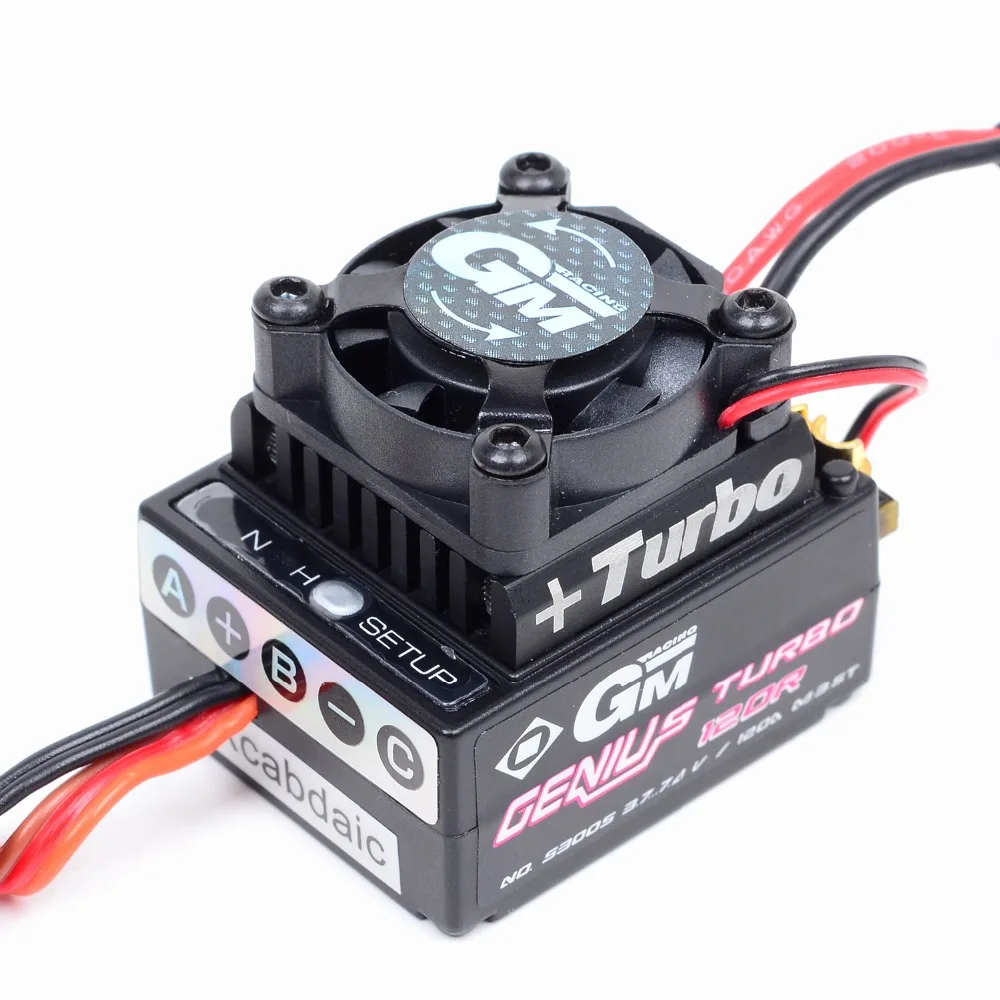

The Graupner GM GENIUS 120R PRO V2 +T ESC is suitable for 1/10 scale on-road modified race, 1/12 pure race and 1/10 off road race.

With its built in real-time telemetry it provides the driver system information such as main pack voltage, current, RPM, speed and more.

When used with a Graupner HoTT surface radio like the X-8N or X-8E, telemetry information will show on the radio screen

or via voice providing instant information to the driver about the vehicle state providing better situational awareness and increased safety.

Manufactured with high quality components and advanced GM Racing software the GM GENIUS 60R provides good performance for use in 1/16~1/10 scale cars.

FEATURES

• Compatible with sensored brushless motors or brushed motors
• Selectable battery type: LiFe, LiPo, NiMH / NiCd
• Down voltage in 0.1V increments: automatic or 3.0 ... 6.5 V
• Power curve: soft, linear, hard
• Zero-timing mode
• High-speed timing mode
• Acceleration (soft throttle) in 5 increments
• Startup power selectable in 5 increments
• Start current limit adjustable from 0 ... 100% or OFF
• Current limit adjustable from 0 ... 100% or OFF
• Modes: forward / brake, forward / brake / reverse
• Two different reverse modes for all settings
• 1. Time delay for reverse adjustable between 0.2 s ... 2.5 s
• 2. Reverse to with braking function
• Neutral point width adjustable in 3 increments
• ABS brakes adjustable in 5 increments or OFF
• Automatic brake 0 ... 100% in 1% increments (great for crawlers)
• Minimum brake from 0 ... 100% in 1% increments
• Maximum brake from 0 ... 100% in 1% increments
• Maximum reverse speed from 20 ... 100% in 1% increments
• Motor magnet pole 2 ... 20 poles and gear ratio adjustable
• Tire diameter settings
• Maximum RPM for 2 pole motors 210,000
• Providing up to 3A BEC current
• Easy firmware upgrade with PC USB cable
• Programmable with Graupner HoTT transmitter or program box
• Cool Power FET technology
• Multi protection system (Temperature, Motor Temperature, Low-voltage cut off, Over-current)
